Home theatre digital power amplifier
| Place of origin | Guangzhou, China |
| MOQ | 1PCS |
| Payment | by TT |
| Delivery time | depends on quantity, usually 3 days for less than 50 pcs |
| Payment terms | 30% deposit, 70% balance before shipping |
| Supply ability | 2000 pcs per month |
| Packaging | inside plastic bag + cardboard + carton + outside plastic bag |
| Price | Negotiable |
ABOUT OUR PRODUCT
GS series amplifier is equipped with independent input and output connectors, and hifi class digital drive circuitry, which makes excellent the ability of timber analysis and expressing. The advanced circuit protection guarantees the stability of the products while protecting the speakers. With unique technology, there will be very low distortion and signal to noise ratio. Besides, all the volume setting can be saved, when you turn the amplifier on next time, it will run at the same setting as it's saved. Applied to situations like KTV, home theater, private club, etc.
Features:
Hifi class driven circuit
Best choice for home theatre
8 channels and 6 channels are available
Stable power supply with transformer
Volume settings can be saved
PRODUCT DETAILS
|
|

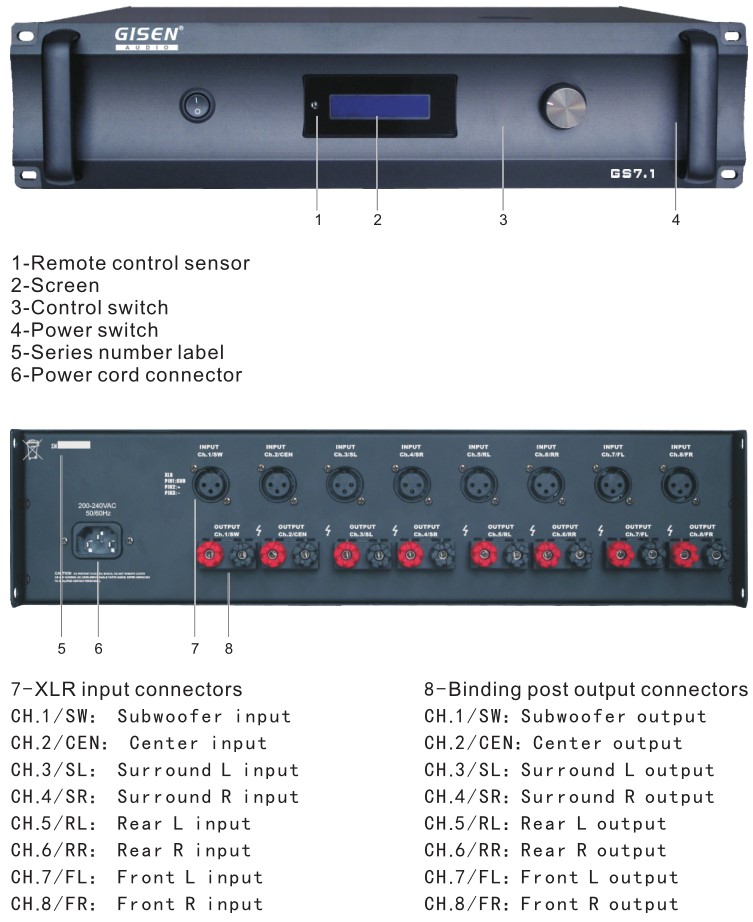

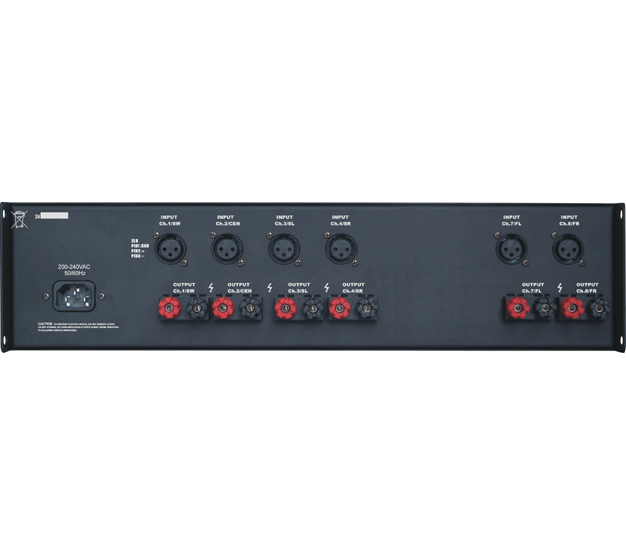

M Two-Channel Top View | M Two-Channel Rear Plate |
SPECIFICATIONS
| Model | GS7.1 | GS7.1S | GS5.1 | GS5.1S |
| 8Ω Stereo Power 4Ω Stereo Power 2Ω Stereo Power | 7X500W+1200W 7X800W+1900W 7X1040W+2470W | 7X300W+800W 7X500W+1300W 7X650W+1690W | 5X500W+1200W 5X800W+900W 5X1040W+2470W | 5X300W+800W 5X500W+1300W 5X650W+1690W |
| Hum& Noise | -100dB | |||
| Channel separation(Crosstalk) | >100dB@1kHz | |||
| Damping Factor 1kHz,8ohms | >400 | |||
| Frequency Response | 20Hz-34KHz(±0.3dB)@1W，8Ω | |||
| Input Impedance（balanced） | 20KΩ | |||
| Volume control | operated by amplifier、operated by remote、operated by Bluetooth | |||
| Volume saving | All volume setting will be auto-saved for next time. | |||
| Cooling | Force-Air Cooling, right-to-left airflow | |||
| Amplifier protection | Short circuit, open circuit, direct voltage, high temperature, Radio-frequency, ultralow frequency, current peak limiter. | |||
| Dimensions(H*W*L) | 110X483X438mm | |||
| Carton Dimension(H*W*L) | 170X600X550mm | |||
| Power Requirement | AC200V-240V (90V-120V), 50-60Hz overheat, overload，radio frequency，ultralow frequency protection | |||
| Net weight(kg) Gross weight(kg) | 32 37 | |||
PRODUCTION FLOW CHART
1. Sheet Metal Processing
2. Circuit Board Plug-in
3. Circuit Board Debugging
4. Circuit debugging
5. Product assembly
6. Debugging of the whole machine
7. Product Aging
