1U class D 2-channel power amplifier
| Place of origin | Guangzhou, China |
| MOQ | 1PCS |
| Payment | by TT |
| Delivery time | depends on quantity, usually 3 days for less than 50 pcs |
| Payment terms | 30% deposit, 70% balance before shipping |
| Supply ability | 2000 pcs per month |
| Packaging | inside plastic bag + cardboard + carton + outside plastic bag |
| Price | Negotiable |
ABOUT OUR PRODUCT
GISEN M Series excellence shows in high efficiency and top class timbre. By adopting the full-bridge low consumption power supply, we can make it in small size and at the same time with strong dynamic. Besides, the module structure and electronic volume control both reflect their value in practical and commercial field. Applied to situations like performance, Venue, high-class Business entertainment club etc.
PRODUCT DETAILS
|
|

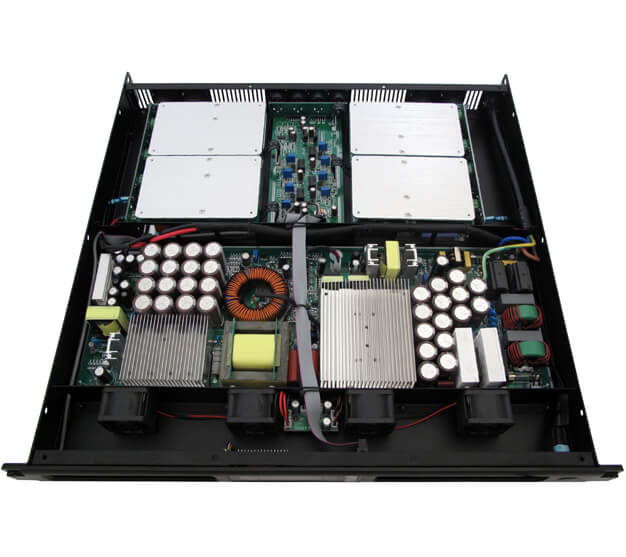

M Two-Channel Top View | M Two-Channel Rear Plate |
SPECIFICATIONS
| Model | M20D | M30D | M40D | M50D | M60D | M750D |
| 8 ohms Stereo Power 4 ohms Stereo Power 2 ohms Stereo Power | 2X650W 2X1300W 2X1690W | 2X900W 2X1800W 2X2340W | 2X1300W 2X2600W 2X3380W | 2X1500W 2X3000W - | 2X1800W 2X3600W - | 2X2100W 2X4200W - |
| Hum& Noise | >112dB | |||||
| Damping Factor | >400 @ 8Ω | |||||
| Input Sensitivity | 0.775-4.2V | |||||
| Frequency Response | 20Hz-20kHz (±0.3dB)@1W, 8Ω | |||||
| Input impedance | 20k ohms balanced | |||||
| volume adjustment | Electronic | |||||
| Cooling | Variable speed fans, front to rear airflow | |||||
| Amplifier Dimensions（H*W*L） | 47mmX483mmX448mm | |||||
| Carton Dimension(H*W*L) | 120mmX590mmX550mm | |||||
| Net weight(kg) Gross weight(kg) | 10.5 12.5 | |||||
PRODUCTION FLOW CHART
1. Sheet Metal Processing
2. Circuit Board Plug-in
3. Circuit Board Debugging
4. Circuit debugging
5. Product assembly
6. Debugging of the whole machine
7. Product Aging
