High power amplifier dj stereo amplifier 2100WX2@ 8ohm
| Place of origin | Guangzhou, China |
| MOQ | 1PCS |
| Payment | by TT |
| Delivery time | depends on quantity, usually 3 days for less than 50 pcs |
| Payment terms | 30% deposit, 70% balance before shipping |
| Supply ability | 2000 pcs per month |
| Packaging | inside plastic bag + cardboard + carton + outside plastic bag |
| Price | Negotiable |
ABOUT OUR PRODUCT
GISEN K-DSP series-digital amplifier equipped with a DSP and network connector. It can be controlled by PC software and multiple amplifiers can be controlled by one computer. The electronic volume control can affectively preventing interference like the traditional potentiometers. Applied to KTV, stadium, performance, meeting room, entertaining clubs, etc.
PRODUCT DETAILS
|
|

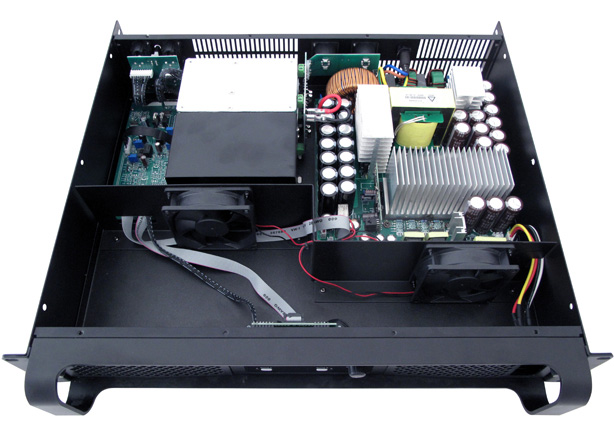

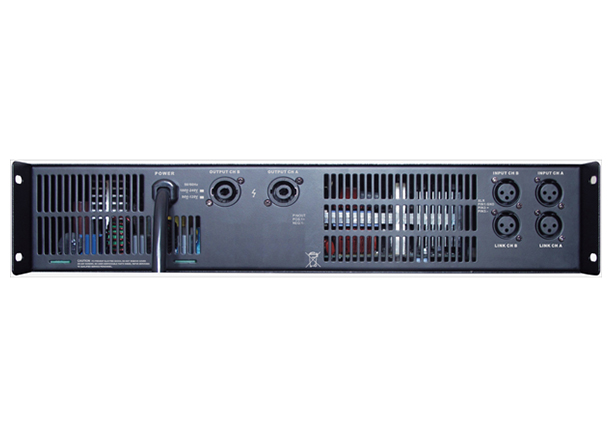

K Two-Channel Top View | K Two-Channel Rear Plate |
SPECIFICATIONS

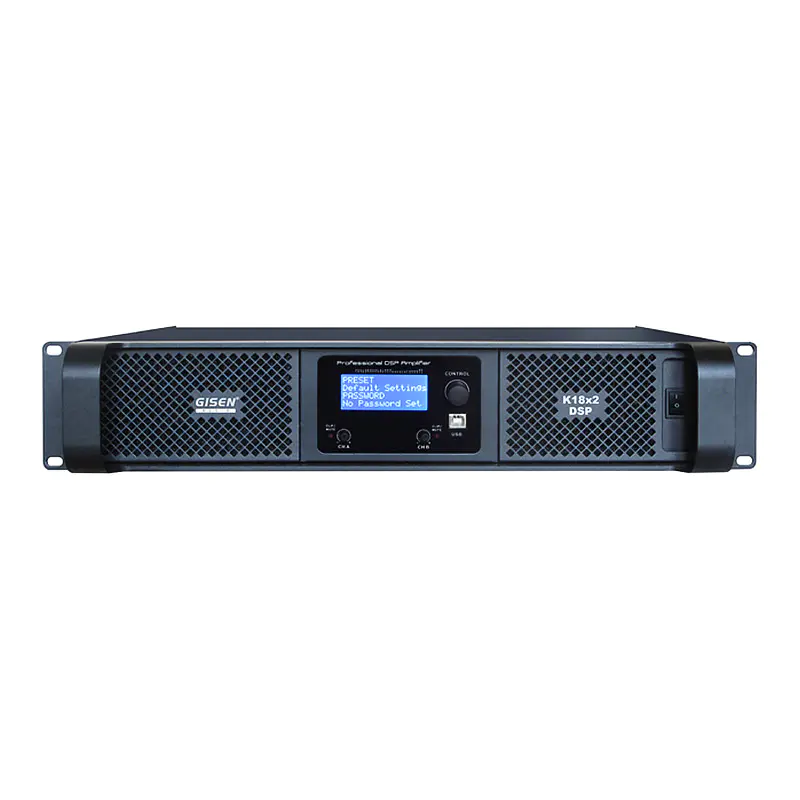

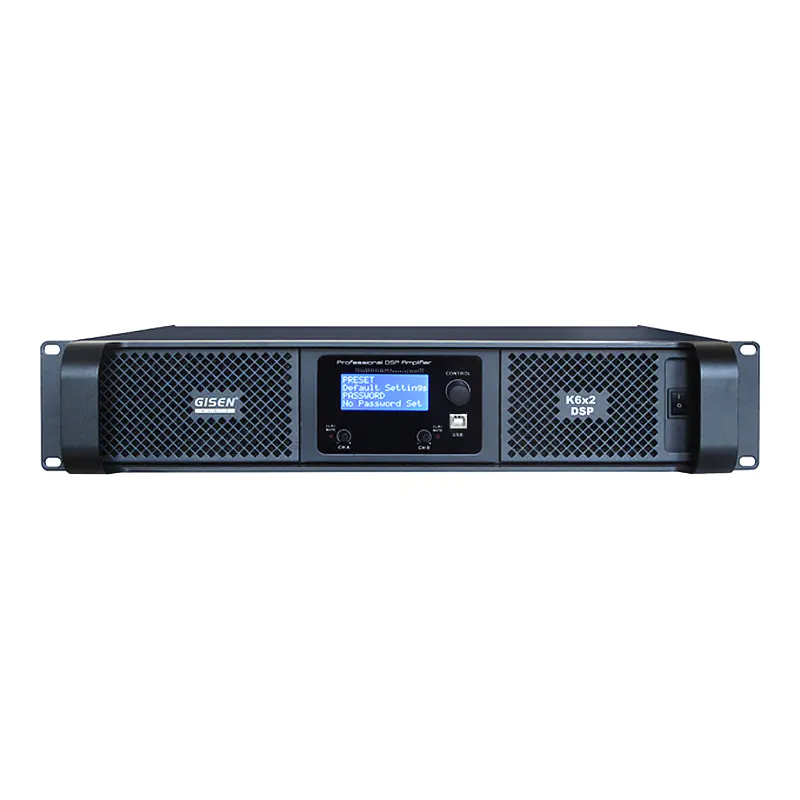

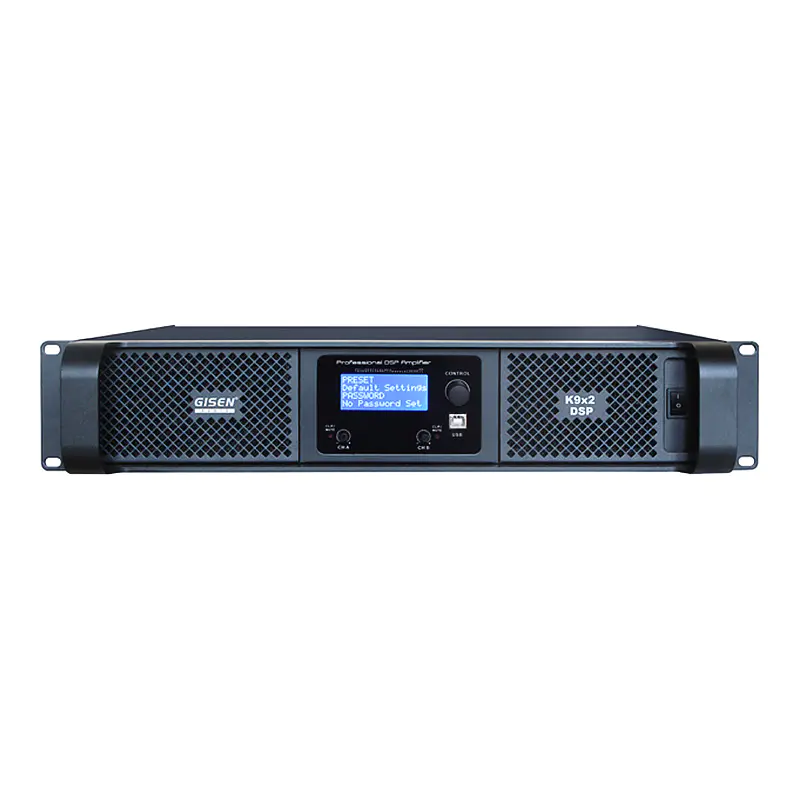

| Model | K6x2-DSP | K9x2-DSP | K13x2-DSP | K18x2-DSP | K21x2-DSP |
| 8Ω Stereo Power 4Ω Stereo Power 2Ω Stereo Power | 2X600W 2X1200W 2X1560W | 2X900W 2X1800W 2X2340W | 2X1300W 2X2600W 2X3380W | 2X1800W 2X3600W - | 2X2100W 2X4200W - |
| Hum& Noise | >112dB | ||||
| Input connector | XLR Female | ||||
| link connector | XLR Male | ||||
| Input impedance | 20k ohms balanced | ||||
| Input Sensitivity | 1.2V | ||||
| Input CMRR | >70dB | ||||
| Output connector | Speakon | ||||
| Damping Factor | >400 @ 8Ω | ||||
| THD | <0.1%(20Hz-20kHz，1W) | ||||
| Frequency Response | 20Hz-20kHz (±0.3dB)@1W, 8Ω | ||||
| volume adjustment | Electronic volume adjustment | ||||
| Internet input connector | Controlling parameters by PC software | ||||
| Internet output connector | Multiple amplifiers on-line control by connecting to the internet input of the next amplifier | ||||
| Touch-screen | adjust the parameters by touching the screen | ||||
| Cooling | Variable speed fans, front to rear airflow | ||||
| Power Requirement | AC180V-240V (90V-120V), 50-60Hz | ||||
| Dimensions（H*W*L） | 88mmX483mmX438mm | ||||
| Carton Dimension(H*W*L) | 150mmX600mmX550mm | ||||
| Net weight(kg) Gross weight(kg) | 10.5 13.6 | 10.5 13.6 | 10.5 13.6 | 11.5 14.6 | 11.5 14.6 |
PRODUCTION FLOW CHART
1. Sheet Metal Processing
2. Circuit Board Plug-in
3. Circuit Board Debugging
4. Circuit debugging
5. Product assembly
6. Debugging of the whole machine
7. Product Aging
