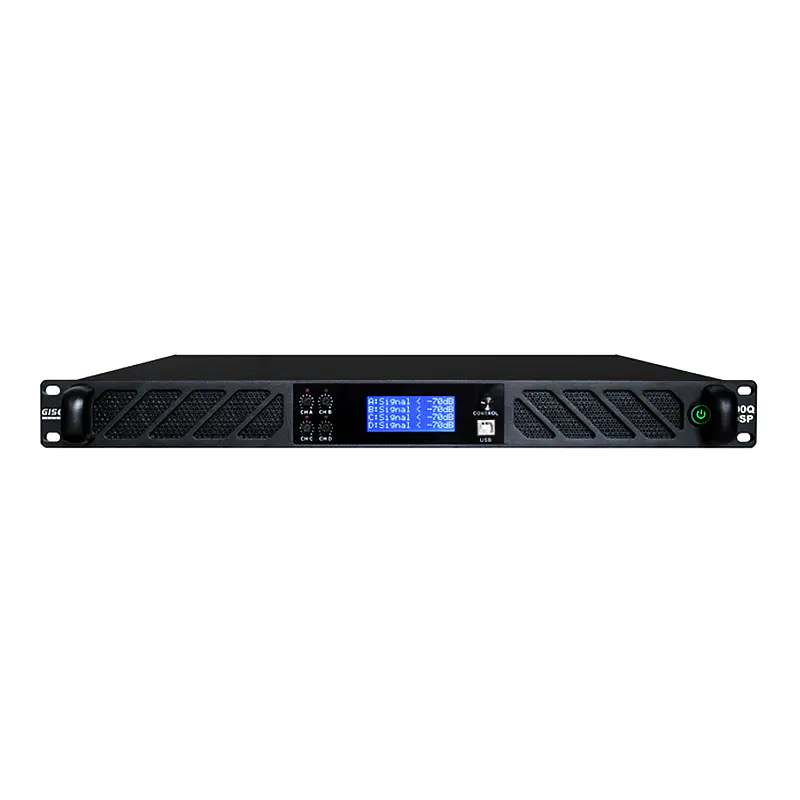

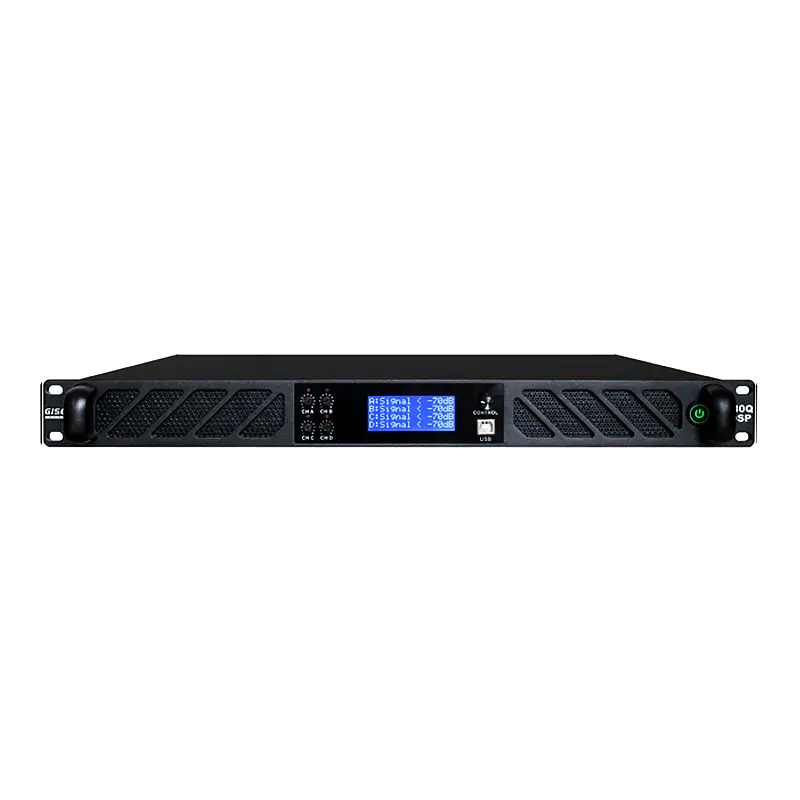

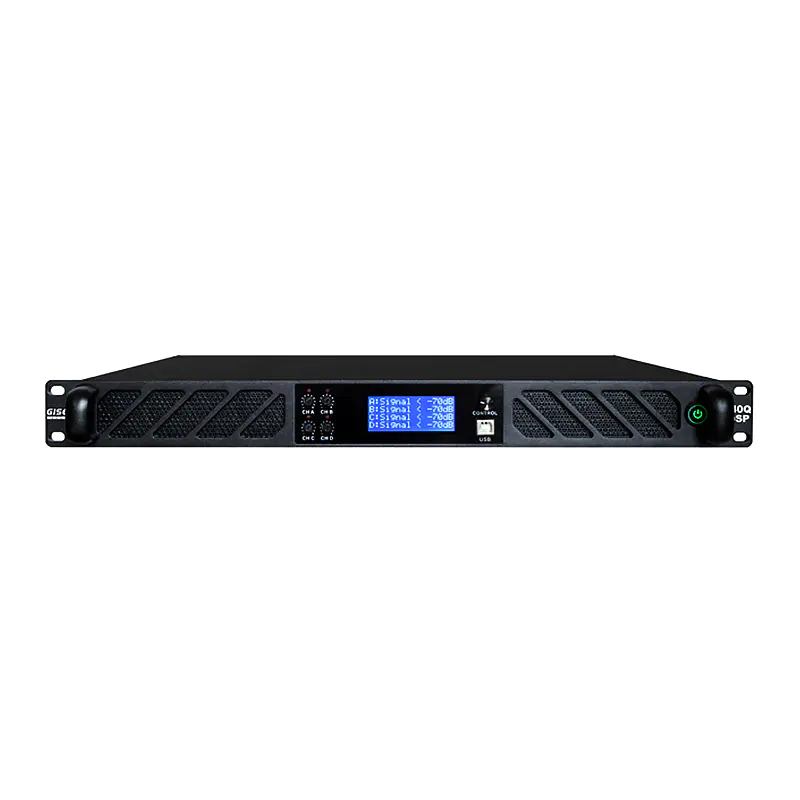

Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel
Digital power amplifier with German DSP 4-channel

Digital power amplifier with German DSP 4-channel

Place of originGuangzhou, China
MOQ1PCS
Paymentby TT
Delivery timedepends on quantity, usually 3 days for less than 50 pcs
Payment terms30% deposit, 70% balance before shipping
Supply ability2000 pcs per month
Packaginginside plastic bag + cardboard + carton + outside plastic bag
PriceNegotiable
Inquire Online

PRODUCT FEATURES

Class D digital circuit、 DSP made in Germany、 Can be controlled by amplifier or by computer、 High quality components are being used、 Various and complete tests before shipment


PRODUCT DETAILS

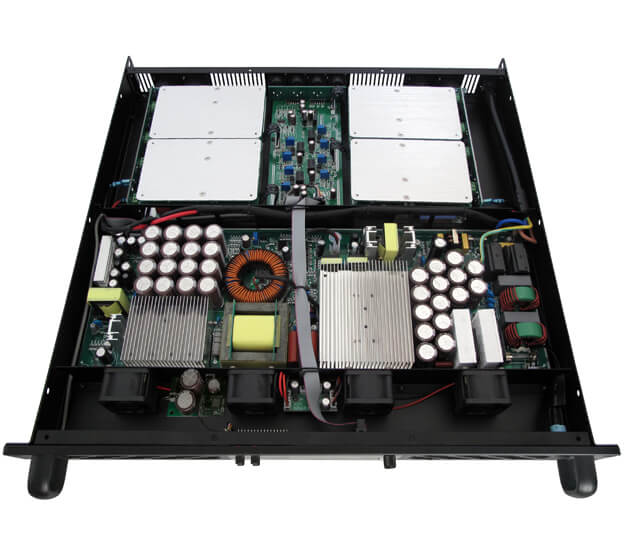

M-DSP 4-Channel Top View

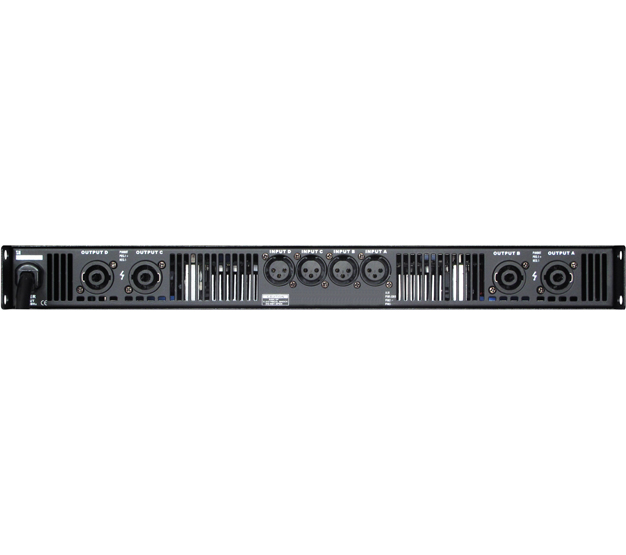

M-DSP 4-Channel Rear Plate


SPECIFICATIONS

ModelM40Q-DSP M60Q-DSPM80Q-DSPM100Q-DSP
8 ohms Stereo Power
4 ohms Stereo Power
2 ohms Stereo Power
 4X650W
 4X1300W
 4X1690W
 4X900W
 4X1800W
 4X2340W
 4X1300W
 4X2600W
 4X3380W
 4X1500W
 4X3000W
Hum& Noise>112dB
Input connectorXLR Female
link connectorXLR Male
Input impedance20k ohms balanced
Input Sensitivity1.4V
Input CMRR>80dB
Output connectorSpeakon
Damping Factor>400 @ 8Ω
THD<0.1%(20Hz-20kHz,1W)
Frequency Response20Hz-20kHz (±0.3dB)@1W, 8Ω
volume adjustmentElectronic volume adjustment
Internet input connectorControlling parameters by PC software
Internet output connectorMultiple amplifiers on-line control by connecting
                      to the internet input of the next amplifier
Touch-screenadjust the parameters by touching the screen
CoolingVariable speed fans, front to rear airflow
Power RequirementAC180V-240V (90V-120V), 50-60Hz
Dimensions(H*W*L)47mmX483mmX448mm
Carton Dimension(H*W*L)100mmX640mmX590mm
Net weight(kg)
Gross weight(kg)
10.5
12.5


PRODUCTION FLOW CHART

1. Sheet Metal Processing

2. Circuit Board Plug-in

3. Circuit Board Debugging

4. Circuit debugging

5. Product assembly

6. Debugging of the whole machine

7. Product Aging
